4~16Ch 12G-SDI Optical Fiber Transceiver

4~16Ch 12G-SDI Optical Fiber Transceiver

4~16Ch 12G-SDI Optical Fiber Transceiver
  • Product Introduction
  • 4~16Ch 12G-SDI Optical Fiber Transceiver

    1、Product Introduction
    This 4~16-channel 12G-SDI optical fiber transmitter and receiver, extends 4~16 channels of 6G-SDI, 3G-SDI, HD-SDI, SD-SDI signals over optical fiber to 1~80km, supports 1-channel 1000M Ethernet over single core optica fiber.
    Our multiple SDI extender over fiber optic cable is all produced by CWDM, uncomressed solution so that we could do multiple SDI signal with data, external audio, Ethernet and other functions over single core fiber cable.Our SDI extenders could meet all broadcast TV transmission quality level. We welcome any OEM service.

    2、Features
    ? Support 4~16-channel 12G-SDI over one-core optical fiber 1~80KM, CWDM
    ? Support 1-ch 1000M Ethernett (optional);
    ? Compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, ASI, TS Stream;
    ? Range from 19.4 Mb/s to 11.88 Gb/s, Support clock recovery;
    ? Support SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom standard;
    ? Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
    100m automatic cable equalization, all the 11.88 Gb/s rate below(Belden 1694A)
    ? WDM,CWDM,DWDM, optional;
    ? Optional network management system;
    ? LED status indicators monitor the critical parameters;
    ? Support hot swap;
    ? 19” 1U rack mounting;
    ? Power supply: 110~240V AC, Dual power supply optional.

    3、Specification
    a) Serial TV, BNC input
    12G-SDI input：4~16 channel
    Signal standard:SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,
    2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
    Signal level:  800mV nominal
    Reflection loss:>15DB
    Timing Jitter:  <2UI（<168ps）
    Alignment jitter: <0.3UI（<28PS）
    Rise/drop time:  200ps nominal
    Connector：75Ω BNC
    Overshoot：10% amplitude

    b) Optics
    Channel:  1
    Type:  Single-mode (multimode optional)
    Wavelength:  CWDM,1260~1620nm, or WDM/DWDM optional
    Output Optical Power:  -3-0dBm
    Rx sensitivity: -16dBm
    Dynamic Range: >-13dBm
    Reflection loss: > 15dB
    Dithering:  < 0.2UI
    Connector:  FC/PC or ST/PC

    c) Serial TV, BNC output (EO/OE)
    12G-SDI output： 4~16 channel
    Signal standard:  SMPTE 424M,292M, 259M, 297M, 305M, 310M,M2S,
    2081,2082, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s -11.88Gb/s)
    Signal level: 800mV nominal
    Rise/fall time: 200ps indication
    Reflection loss:  >15DB
    Timing Jitter:  <2UI（<168ps）
    Alignment jitter:  <0.3UI（<28PS）
    Rise/drop time:  200ps nominal
    Connector:75Ω BNC
    Overshoot：10% amplitude

    d) Gigabit Ethernet
    Interface:  RJ45
    Mpbs:  1000M
    Protocol Standard:     IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x Flow control

    e) Data (Optional)
    Channel:  1-4
    Data format: RS-485 (full/half duplex) and support NRZ, RZI and Manchester
    Data rate:  DC to 100 Kb/s
    Mode: Full/half duplex
    Connector: Wire connecting terminal

    f) Power and environmental indication
    Operating temperature: 0°C~+50°C
    Pressure:  90VAC to 245VAC
    Power:   12 W
    EMI/RFI:  Meet FCC Part 15 Class A, EU EMC standard
    Average time trouble-free: >100000 hours

    g) Other
    Dimension: 1U standard rack mounting

    Weight: 1.5~2Kg

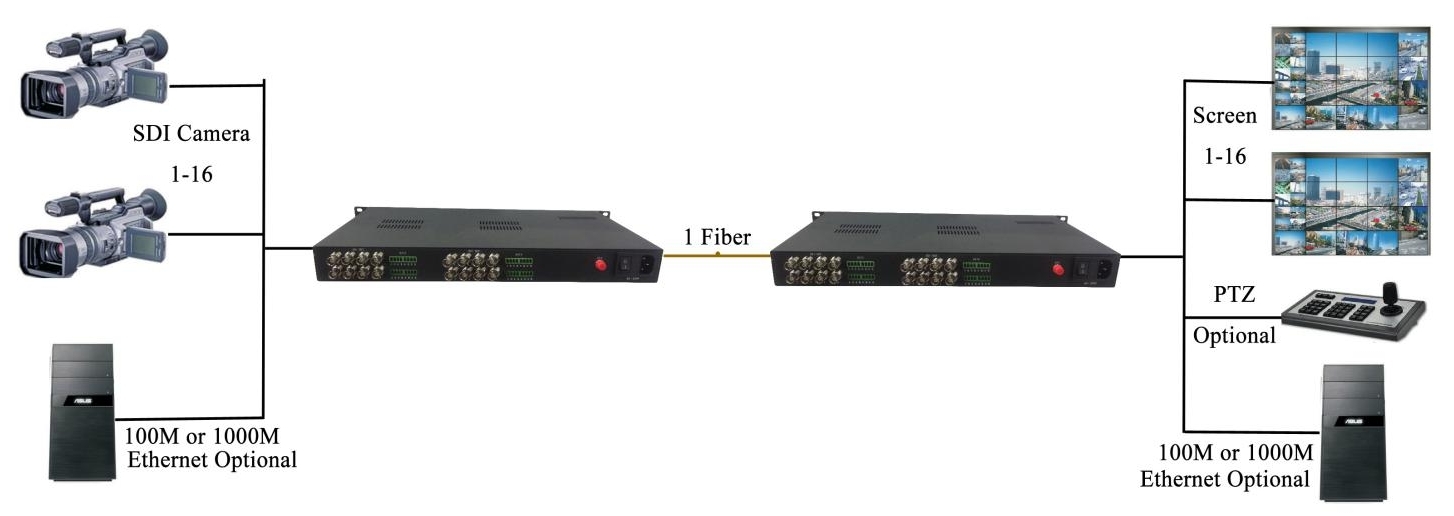

    4、Topological Graph


    5、Application
    Remote OB Van/Truck Video Feeds;
    Broadcast Studio Camera Feeds;
    Long-haul Signal Transport;
    TV station/video conference;
    Lecture Hall Projector Connectivity;
    Medical/Surgical Room Broadcast;
    Small corporate campus video links.....

    6、Ordering Information
    8-ch 12G/3G/HD/SD-SDI Optical Fiber Transmitter+Receiver:
    ·HC1208P-T
    Transmitter: 8-ch 12G/3G/HD/SD -SDI input, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
    ·HC1208P-R
    Receiver: 8-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
    ·HC120404P-TR
    Transceiver: 4-ch 12G/3G/HD/SD-SDI input, 4-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount

    16-ch 12G/3G/HD/SD-SDI Optical Fiber Transmitter+Receiver:
    ·HC1216P-T
    Transmitter: 16-ch 12G/3G/HD/SD -SDI input, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount
    ·HC1216P-R
    Receiver: 16-ch 12G/3G/HD/SD -SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km, 1U rack mount.
    ·HC120808P-TR
    Transceiver: 8-ch 12G/3G/HD/SD-SDI input, 8-ch 12G/3G/HD/SD-SDI output, CWDM,over single fiber, 1-ch 1000M Ethernet, FC/PC fiber connector, BNC video interface, 1-80km,1U rack mount.
